Tube / Hose

Snake Horse

  • Tube / Hose
  • ROHS Directive

overview

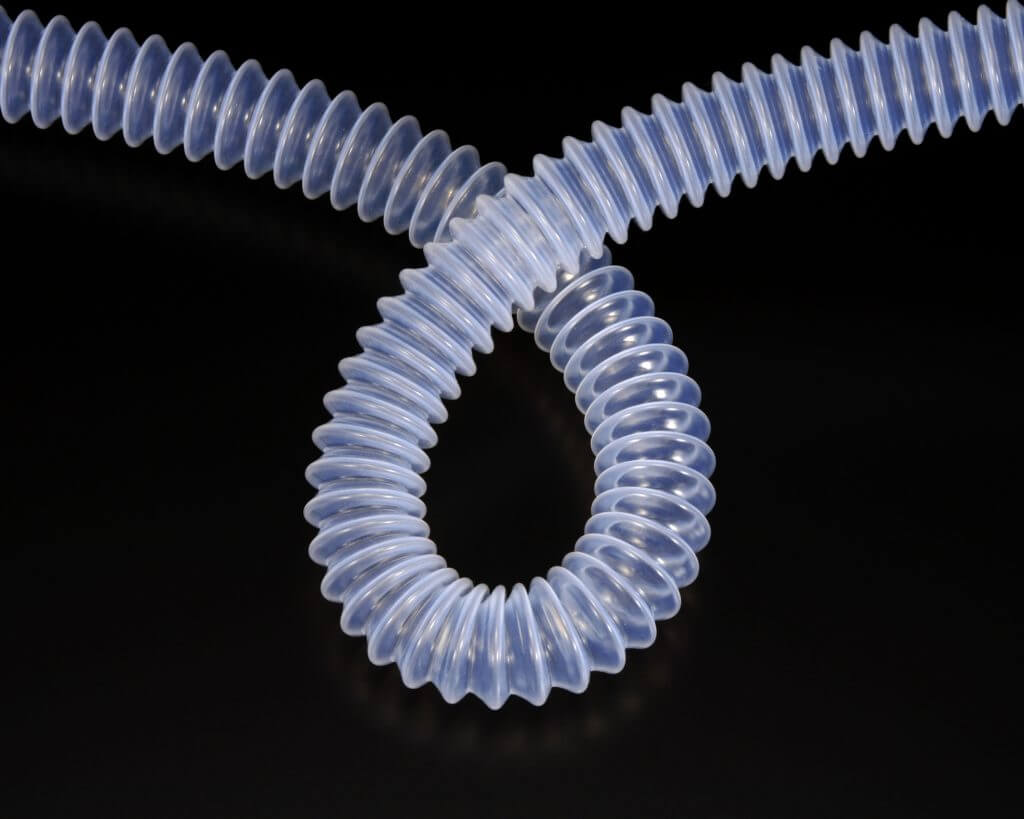

Our unique molding method allows fluoroplastic hoses to have flexibility This makes it suitable for applications requiring a small bending radius and flexible piping. We manufacture the S Series in spiral form and the I Series in continuous, freestanding mountainous form.

Applications

・Semiconductor manufacturing equipment
Optical equipment
・ chemical resistance piping in the electrical and electronic fields
・Chemical piping in the electrical/electronic and chemical fields

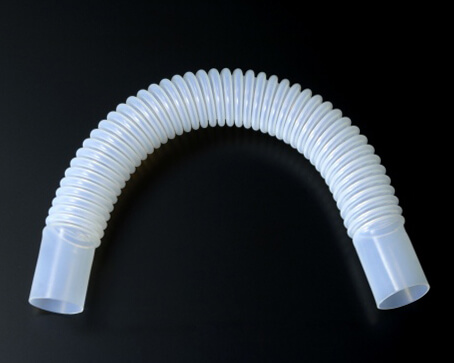

S Series Resin type: PTFE

This hose has a spiral groove on the PTFE tube.
This product is flexibility and does not pool liquid.

Applications

・Semiconductor manufacturing equipment
Optical equipment
・ chemical resistance piping in the electrical and electronic fields

Maximum operating temperature

+120°C

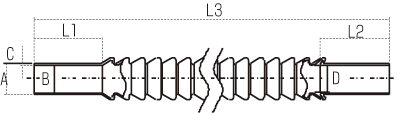

Dimensions and characteristics table

Nominal size
(mm)
Outer diameter A
(mm)
Inner Tube B
(mm)
Wall thickness C
(mm)
Effective inner diameter D
(mm)
Bend Radius
(mm)
Burst pressure at room temperature
(MPa)
length
L1, L2 (mm)
full length
L3(m)
4×7 5.5~7.0 4.5~6.0 0.5 4.0 10 1.5 15~30 10
5×8.5 6.5~9.0 5.5~8.0 5.0 14 1.1
7×11 8.5~11.0 7.5~10.0 7.0 16 0.8 15~35
9×13 10.5~13.0 9.5~12.0 9.0 18 0.6 15~40
11×16.5 12.5~15.5 11.5~14.5 11.0 20 0.5

*The effective radius is a reference value.
*The burst pressure and bending radius are measured at room temperature and are not standard values.
*The above values are actual measurements and are not guaranteed values.
*Please contact us for any dimensions other than those listed above.


I Series Resin type: PFA

This hose has independent mountain-shaped grooves while retaining the properties of PFA.

Applications

・Semiconductor manufacturing equipment
Optical equipment
・Chemical piping in the electrical/electronic and chemical fields

Maximum operating temperature

+150°C

Features

●It is highly flexibility, making it easy to maneuver and work with.
●High transparency makes it possible to visually check the liquid flow rate.
●Excellent non-stick characteristics and chemical resistance.

Dimensions and characteristics table

Nominal size
(inches)
Outer diameter A
(mm)
Inner diameter B
(mm)
Wall thickness C
(mm)
Effective inner diameter D
(mm)
Bend Radius
(mm)
Burst pressure at room temperature
(MPa)
length
L1, L2 (mm)
full length
L3(mm)
1/4 6.8 6.0 0.41 5.5 1.6 1.5 50 100~1300
3/8 10.3 9.2 0.55 8.5 2.4 1.3 50
1/2 13.5 12.1 0.68 11 3.2 1.3 50
3/4 20.3 18.7 0.78 17.4 4.8 0.9 50
1 26.7 24.8 0.93 23.0 6.4 0.8 60

*The effective radius is a reference value.
*The burst pressure and bending radius are measured at room temperature and are not standard values.
*The above values are actual measurements and are not guaranteed values.
*Please contact us for any dimensions other than those listed above.
