Radiation heat dissipation sheet PAL-350A
- Adhesive tape (Chukoh tape)
- Aluminum film material
overview
This tape is made of aluminum film with high thermal conductivity coated with heat-dissipating paint with high emissivity. It converts heat into infrared rays and dissipates it.
Applications
・Heat dissipation for heat-generating components (IC chips, diodes) and housings
・Electromagnetic wave shielding
Features
● By mixing fluoroplastic, it has Weatherability.
●By sticking it directly to a heating element, it can provide a heat diffusion effect through radiant heat dissipation.
●Since the total thickness is thin at approximately 110 μm, it can be used in places where space is limited or where lightweight is required.
●At high frequencies (@1GHz to 6GHz), there is an attenuation effect of approximately 50dB.
●It is also possible to punch out specified shapes.

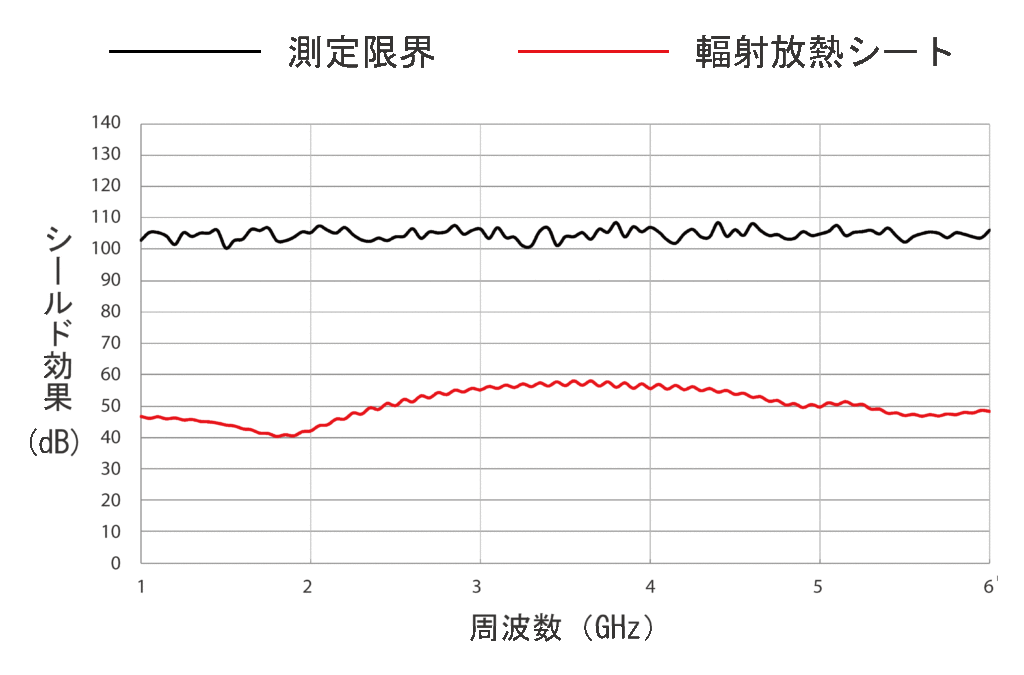

Electromagnetic wave shielding effect (1GHz to 6GHz)
Heat dissipation effect

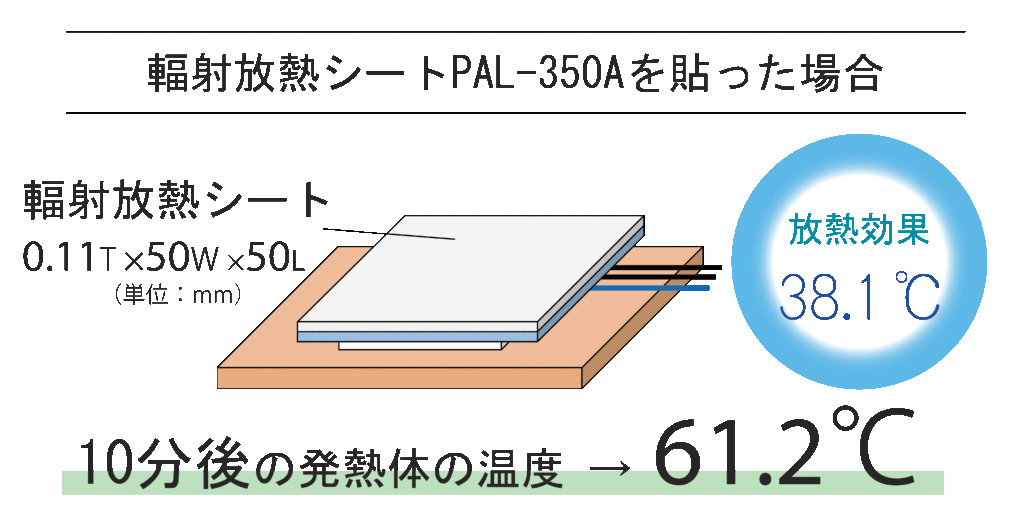

[1] When a 50mm x 50mm radiation heat dissipation sheet PAL-350A was applied, the heat dissipation effect was approximately 38°C.

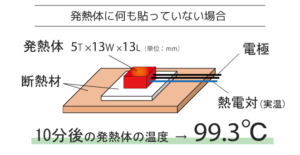

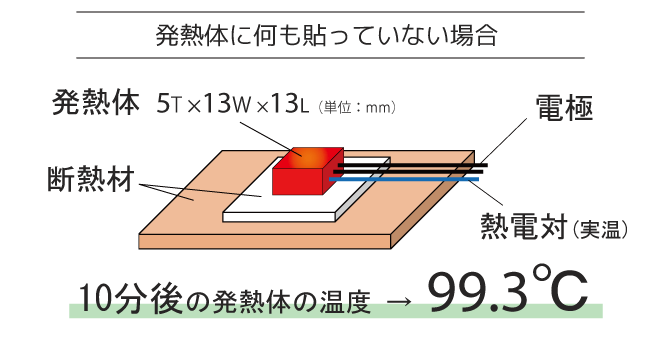

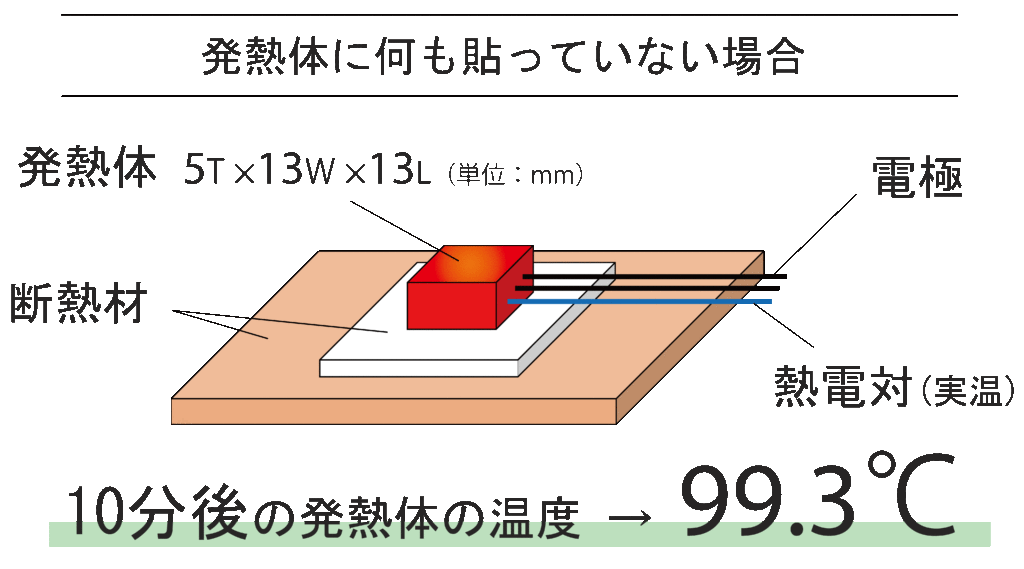

Test method: Treat the heating element as an IC chip and measure the temperature change of the heating element after 10 minutes
Heat dissipation effect
[2] The larger the size of the PAL350A radiation heat dissipation sheet used, the greater the heat dissipation effect.
*The above values are measured values and not standard values.

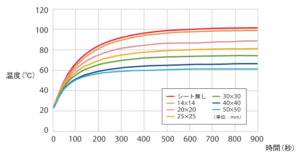

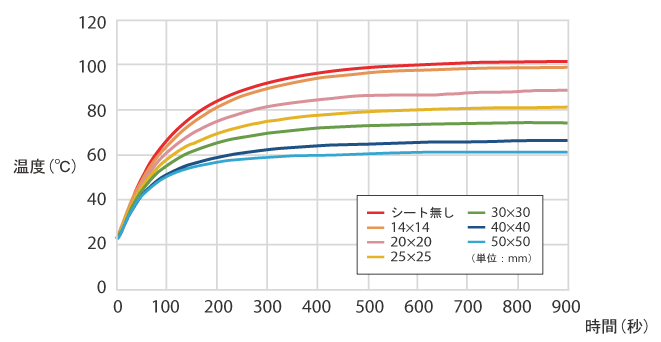

Heat dissipation effect

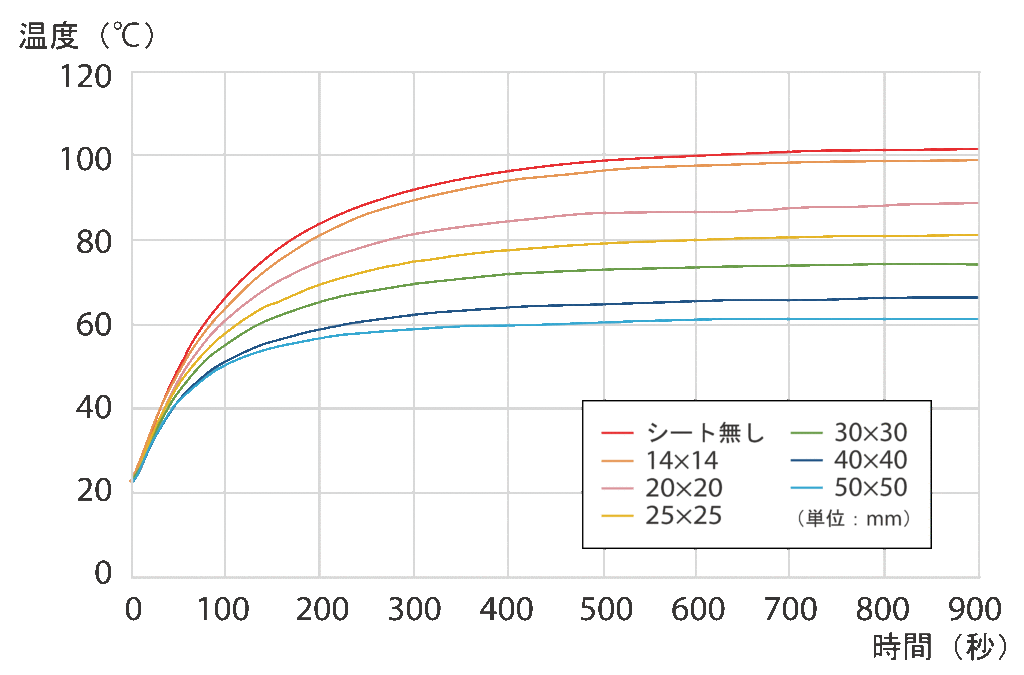

[3] The temperature of the heating element will change depending on the dimensions of the radiant heat dissipation sheet PAL-350A.
Test method: Measure the dimensions of the radiation heat dissipation sheet PAL-350A and the temperature of the heating element after 10 minutes
Dimensions of radiation heat dissipation sheet PAL-350A (mm) | Heating element temperature (℃) |
---|---|
No seat | 99.3(-) |
14×14 | 98.2(-1.1) |
20×20 | 86.4(-12.9) |
25×25 | 80.0(-19.3) |
30×30 | 73.4(-25.9) |
40×40 | 65.4(-33.9) |
50×50 | 61.2(-38.1) |
*The above values are measured values and not standard values.
Distributor
Thickness (mm) | Standard width (mm) | Length (m) | |
---|---|---|---|
0.11 | 480 | 1~45 |
Product performance
Test items | PAL-350A | |
---|---|---|
Emissivity (ε) | 0.91 | |
Maximum operating temperature (℃) | 150 |
